The water will be called as "hard" if it contains calcium or magnesium salts dissolved in it. A water softener reduces the dissolved calcium and magnesium salts in hard water. These "hardness ions" cause undesired effects like hindering the ability of detergents to lather and forming a precipitate and forming scales to the surfaces of pipes and heat exchanger surfaces
Ion-exchange materials contain sodium ions (Na+) that are electrostatically bound and that readily are replaced by hardness ions such as Ca2+ and Mg2+. Ion exchange resins are organic polymers containing anionic functional groups to which the Na+ is bound.
The water to be treated passes through a bed of the resin. The resins initially contain univalent sodium ions, which exchange with divalent calcium and magnesium ions in the water. As the water passes through the resin column, the hardness ions replace the sodium ions which are released into the water. The "harder" the water, the more sodium ions are released from the resin and into the water. As these resins become loaded with undesirable cations they gradually lose their effectiveness and must be regenerated.
Applications
- Boiler Feed
- Process water in textile mills
- Cooling water treatment
- Air conditioning plant
- Food processing
- Hotels, hospitals & Laundry
- RO pre-treatment

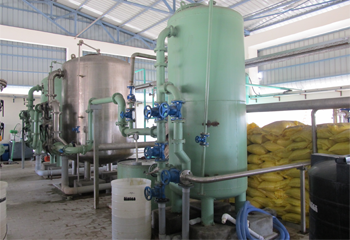

Features of ZION ENVIRO softeners
- FRP, MSEP, MSRL and SS Vessels as per requirement.
- Manual, Semi Automatic and Automatic features are provided.
- Pneumatic and electrical operating automatic valves can be provided.
- Automatic control and electrical cabinet
- Capacity up to 250 mᶟ/hr
|
 |
