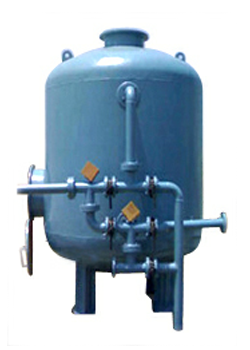

Dual media filter contain anthracite in combination with sand supported by pebble and gravels. This filter consists of a layer of anthracite (1.25-2.5mm) resting on a layer of fine sand (1 mm - 1.5mm) Anthracite is coarse and has more dirt holding capacity as compared to sand.
Advantages and Features
Efficient Turbidity and TSS Removal.
Filter up to 20 – 30 Microns.
Low Pressure drop across the vessel.
Air scouring is available for high flow pressure vessel.
Long filter cycles between backwashing with minimum loss of pressure.
ZION ENVIRO offers
FRP, MSEP, MSRL and SS Vessels as per requirement.
Flow rate upto 110 m3/hr max.
Manual, Semi Automatic and Automatic featured filters for any suitable capacity.
Pneumatic and electrical operated automatic valves controlling frontal pipe work.
